Steel Tube Manufacturing & Fabrication

Parthenon Tube & Southeast Tube are steel tubing manufacturers and fabricators serving the Midwest & Southeast United States.

Under the umbrella of American Consolidated Industries, we own and operate our own steel service centers and trucking, eliminating the middleman markups to deliver exceptional quality and value to our customers. We control all aspects of tube manufacturing process, from sourcing the steel to your specification to providing complex, tight-tolerance fabrication services like high-speed length cutting, laser cutting, and bending.

Contact Us

Big Enough to Matter,
Small Enough to Care

We’re a mid-sized company with 3 steel service centers and 2 steel tubing facilities. Although we operate like most corporations, ACI is a family-owned business and that shows through in our people-centric culture.

We continue to mature in capability and capacity, but a few things will always remain true to American Consolidated Industries, Inc. – safety, quality, customer service, and most importantly, our people.

Our Tubing Facilities & Equipment

Our facilities are centrally-located and just 90 minutes down the road from each other, allowing us to fulfill tubing needs throughout the Midwest & Southeast United States.

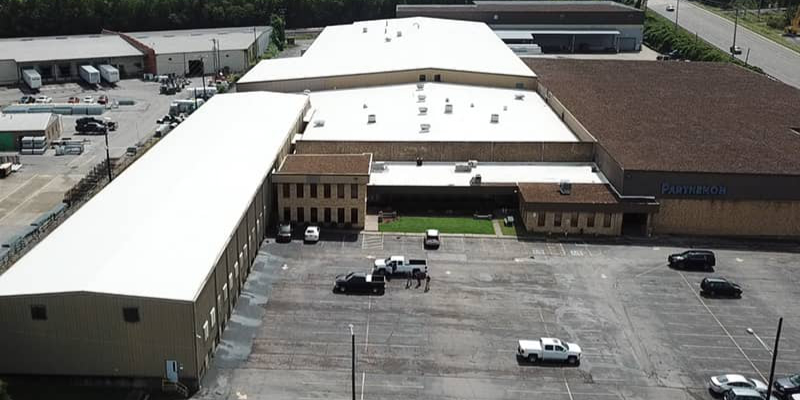

Parthenon Tube

250,000 sq. ft. manufacturing facility on 12 acres with room for future expansion. Located 30 minutes SE of Nashville and just minutes off of I-24:

5018 Murfreesboro Rd
La Vergne, TN 37086

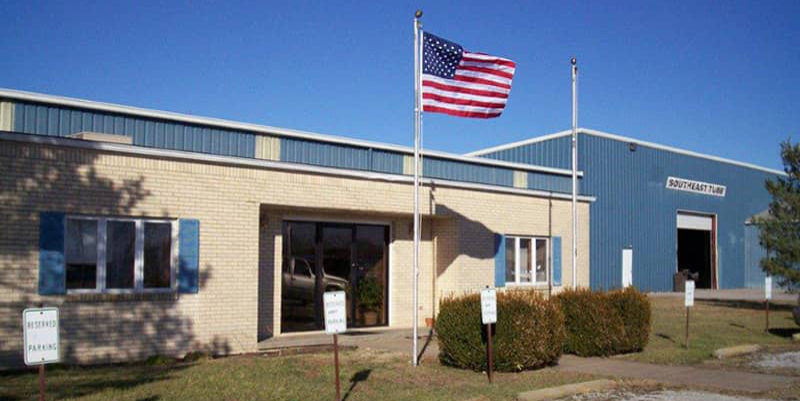

Southeast Tube

45,000 sq. ft. manufacturing facility on 12 acres with room for future expansion. Located 75 minutes NW of Nashville and just minutes off of I-24:

174 Roger Thomas Drive
Cadiz, KY 42211

We’ve invested significant capital into our equipment to ensure that we can meet the requirements of our customers.

Between our 2 tubing facilities, we have:

8 small tube mills
1 large tube mill
2 high-tech semi-automated tube benders
1 high-tech automated tube laser
1 automated precision high-speed saw
multiple manually-operated high-speed saws

Steel Tube Specifications

Our experienced team and 9 tube mills enable us to produce steel tubing to meet a wide variety of customer requirements and ATSM specifications:

Measurement	Small Tube Mill	Large Tube Mill
Round/Oval Diameter	0.394″ – 2.250″	1.500″ – 4.000″
Square Diameter	0.500″ – 1.500″	1.181″ – 3.150″
Rectangle Width x Height	0.394″ x 0.866″ up to 1.000″ x 2.000″	0.787″ x 1.575″ up to 1.575″ x 4.720″
Length for all Shapes	4.00′ – 24.00′ (48″ – 288″)	13.00′ – 28.00′ (156″ – 336″)

Material Types

Cold Rolled Steel
Hot Rolled Steel
Hot Rolled Picked & Oiled Steel
Galvanized Steel

Wall Thickness

Min: 0.024″ Max: 0.104″ (Small Tube Mills)
Min: 0.040″ Max: 0.250″ (Large Tube Mill)

Flash Removal Options

Flash not removed
Flash removed flush to 0.010″
Flash controlled to 0.010″

Testing & Quality Assurance

Destructive testing (flatten and flare)
Non-destructive testing (eddy current)
We can meet a variety of ATSM specifications
We’re certified to meet ISO standards and requirements for:
- 9001:2015 (Quality Management System)
- 17025:2017 (Testing)

Tube Fabrication Services

We cater to the most simple and complex fabrication needs, and everything in between. Specific services include:

Tube Laser Cutting

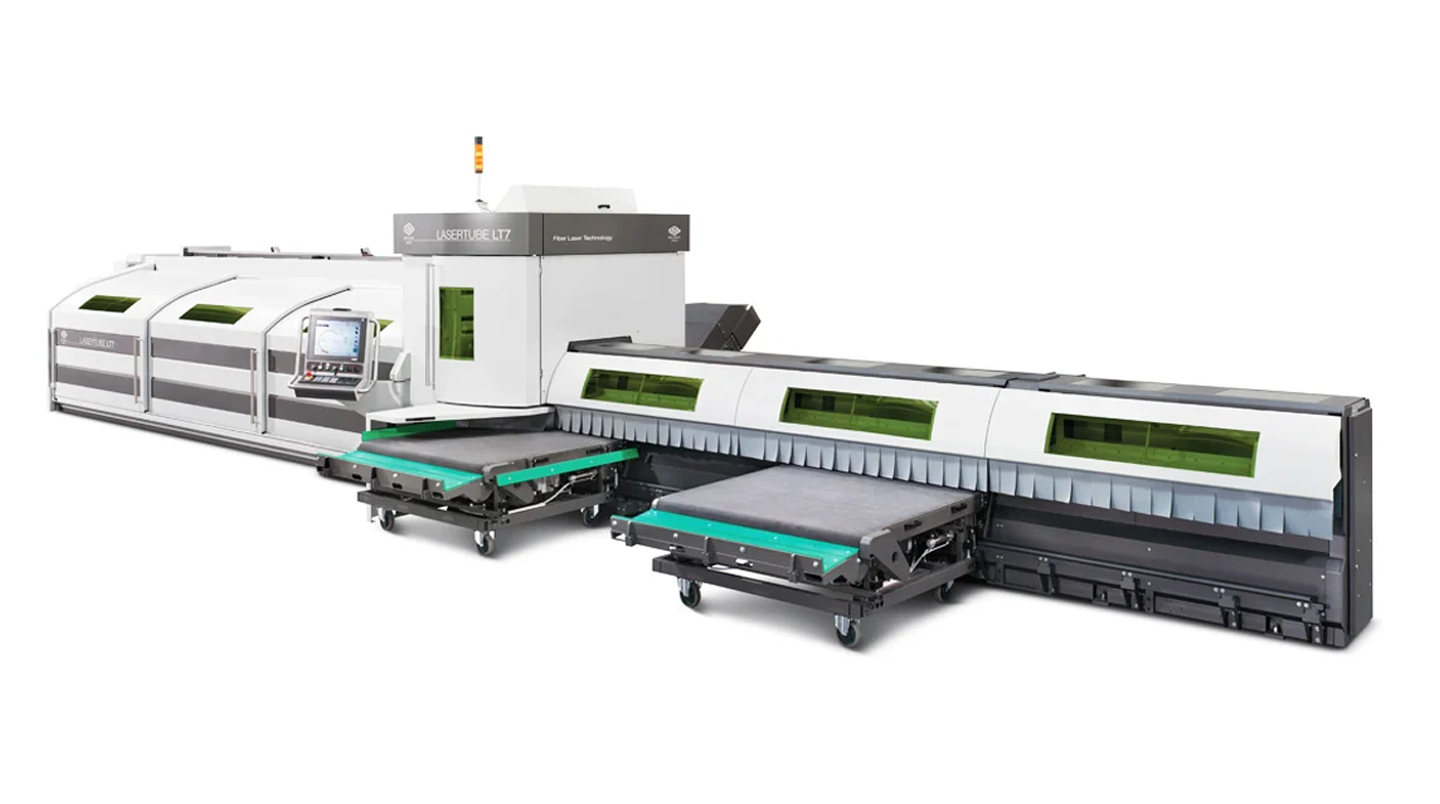

Just about anything is possible with our next-gen BLM LaserTube LT7. It ensures perfect cuts, notches and more on straight and bent steel tubes.

Precision Tube Bending

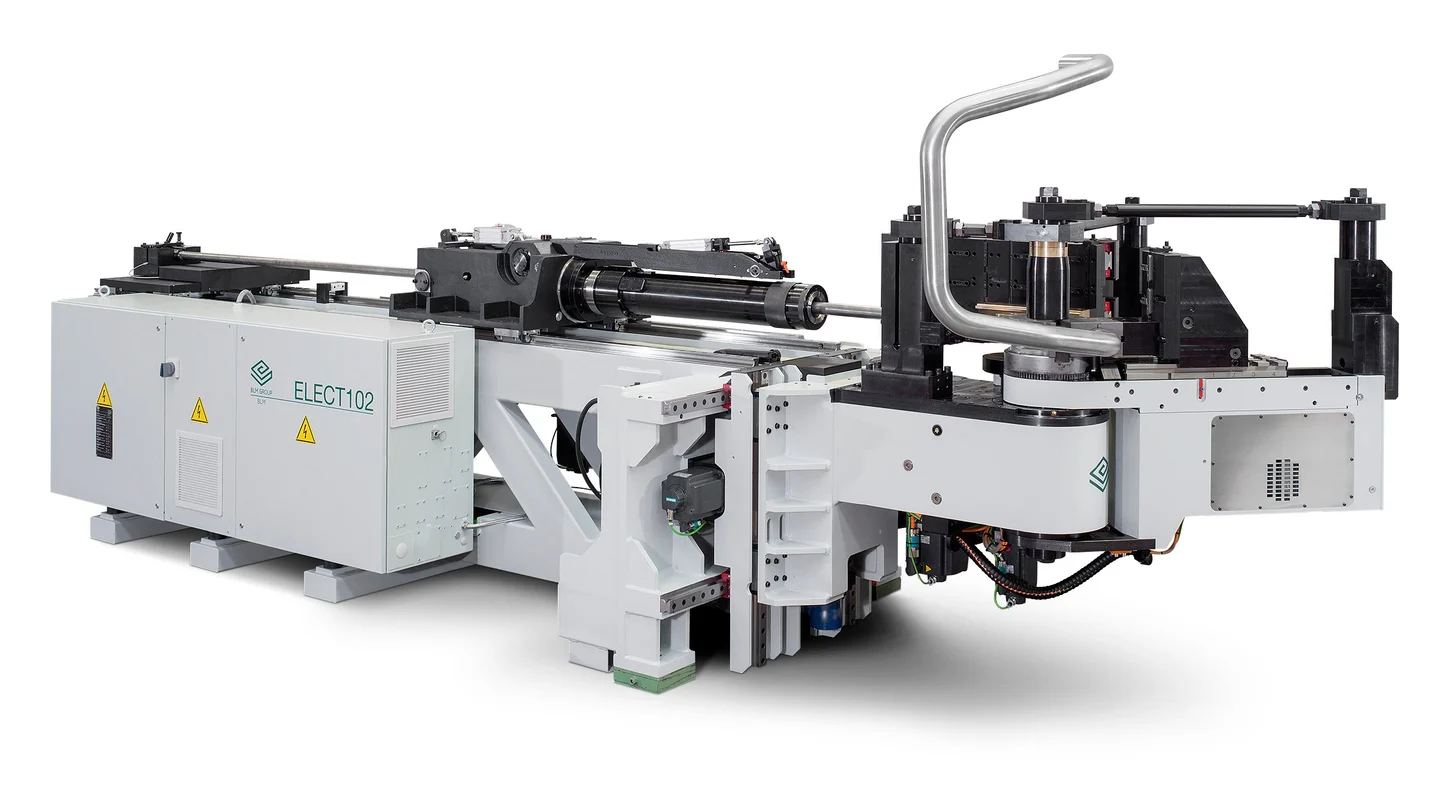

Precision bends and consistent quality on even the most complex parts is a given with our 2 state-of-the-art BLM Elect 102B tube benders.

Precision High-Speed Cutting

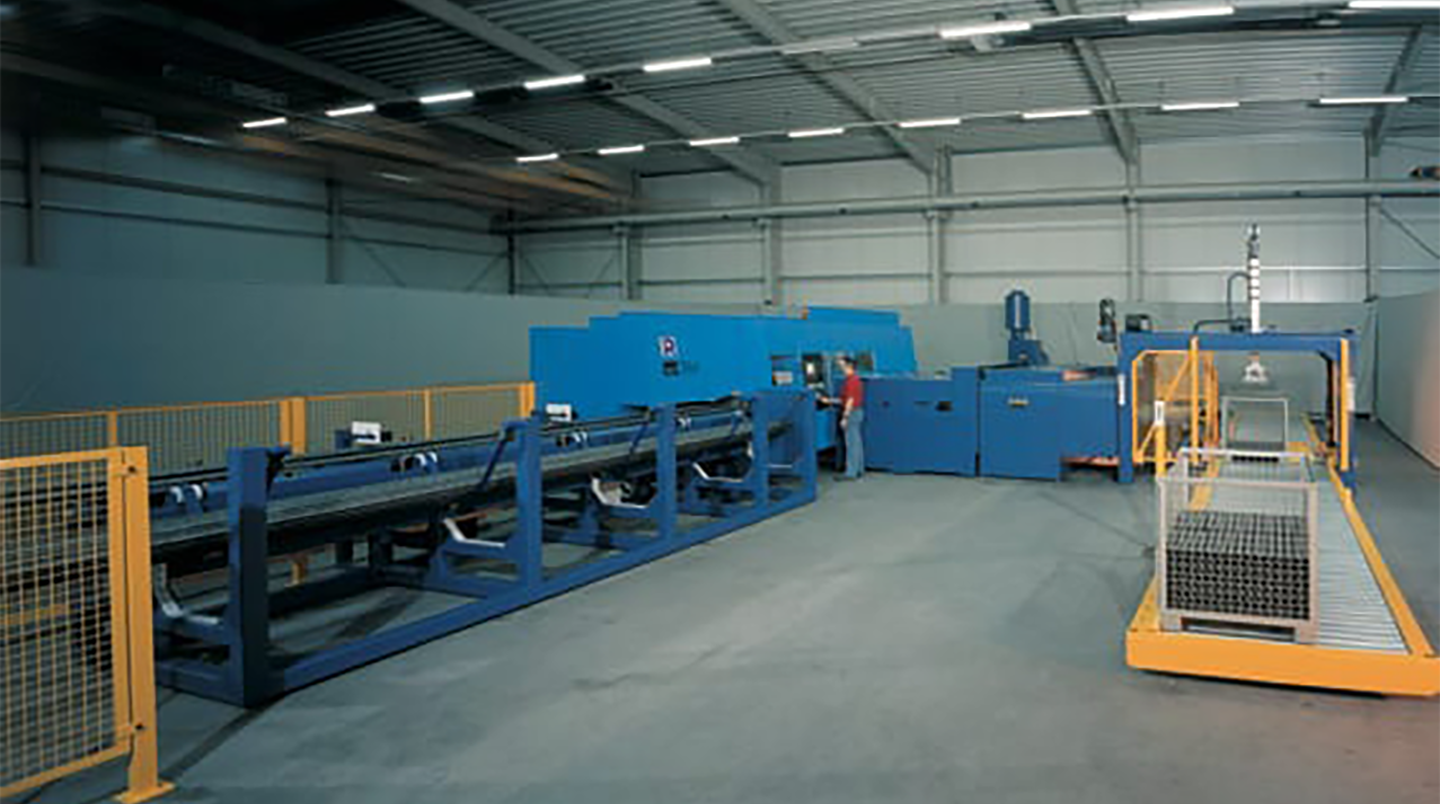

Our automated precision high-speed saw (the high-tech Rattunde ACS 105 + BDM) provides comparable quality to our tube laser at a more affordable cost.

Other Specialty Needs

Don’t see the tube fabrication service you’re looking for? We have other specialized capabilities and are always willing to look into what it would take to further expand our fabrication services.
